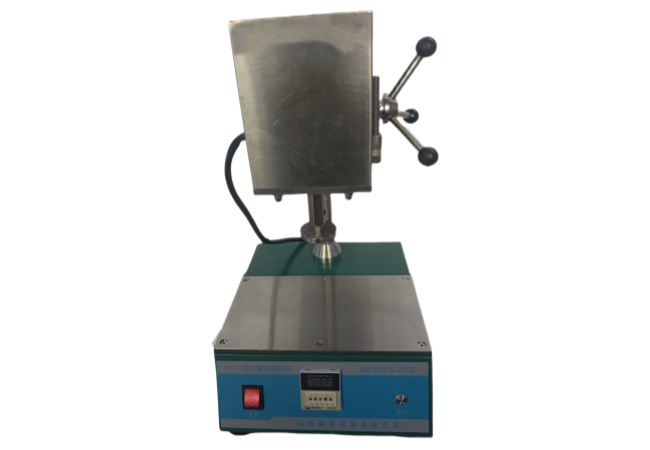

SY5018B Lubricating grease anti-corrosion performance tester
The SY5018B grease corrosion resistance tester is designed and manufactured according to the GB/T5018-2008 ASTM D1743 standard, and is suitable for measuring the corrosion resistance of lubricating grease using tapered roller bearings coated with lubricating grease under humid conditions.
The appearance design of the lubricant anti-corrosion tester is beautiful and generous, the structural design is reasonable, the operation is convenient, and the results are accurate.
Technical Specifications
| Working power supply | AC 220V ± 10% 50 Hz |
| Motor speed | 1450r/min ± 50r/min |
| Motor power | 60W |
| Bearing vertebral body | LM11949 |
| Bearing outer ring | LM11910 |
| Net size | 285 * 265 * 480 mm |
| Instrument weight | 22.5kg |
| Outer packaging size | 535 * 380 * 660 mm |
● Working power supply: AC 220V ± 10% 50 Hz
● Motor speed: 1450r/min ± 50r/min
● Motor power: 60W
● Bearing vertebral body: LM11949
● Bearing outer ring: LM11910
● Net size: 285 * 265 * 480 mm
● Instrument weight: 22.5kg
● Outer packaging size: 535 * 380 * 660 mm
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Bearing grease applicator | 1 | Set | |
| 3 | Fuse tube | 2 | Piece | 10A |
| 4 | Bearing outer ring | 3 | Document | LM11910 |
| 5 | Bearing vertebral body | 3 | Document | LM11949 |
| 6 | Bearing bracket | 3 | Set | M6 * 3 white steel bolt |
| 7 | Plastic Container | 3 | Set | with lid |
| 8 | Pliers | 1 | Piece | |
| 9 | Syringe | 1 | Set | 100ml capacity, 200mm long 16 gauge needle |
| 10 | Load the spring | 3 | Document | |
| 11 | O-ring | 3 each | Piece | Φ33.5*3.55,Φ45*3.55, Φ50*5.3 |
| 12 | Template | 1 | Piece | |
| 13 | Instruction Manual | 1 | Copy | |
| 14 | Packing List | 1 | Copy | |
| 15 | Certificate of Conformity Warranty Card | 1 | Copy | |
