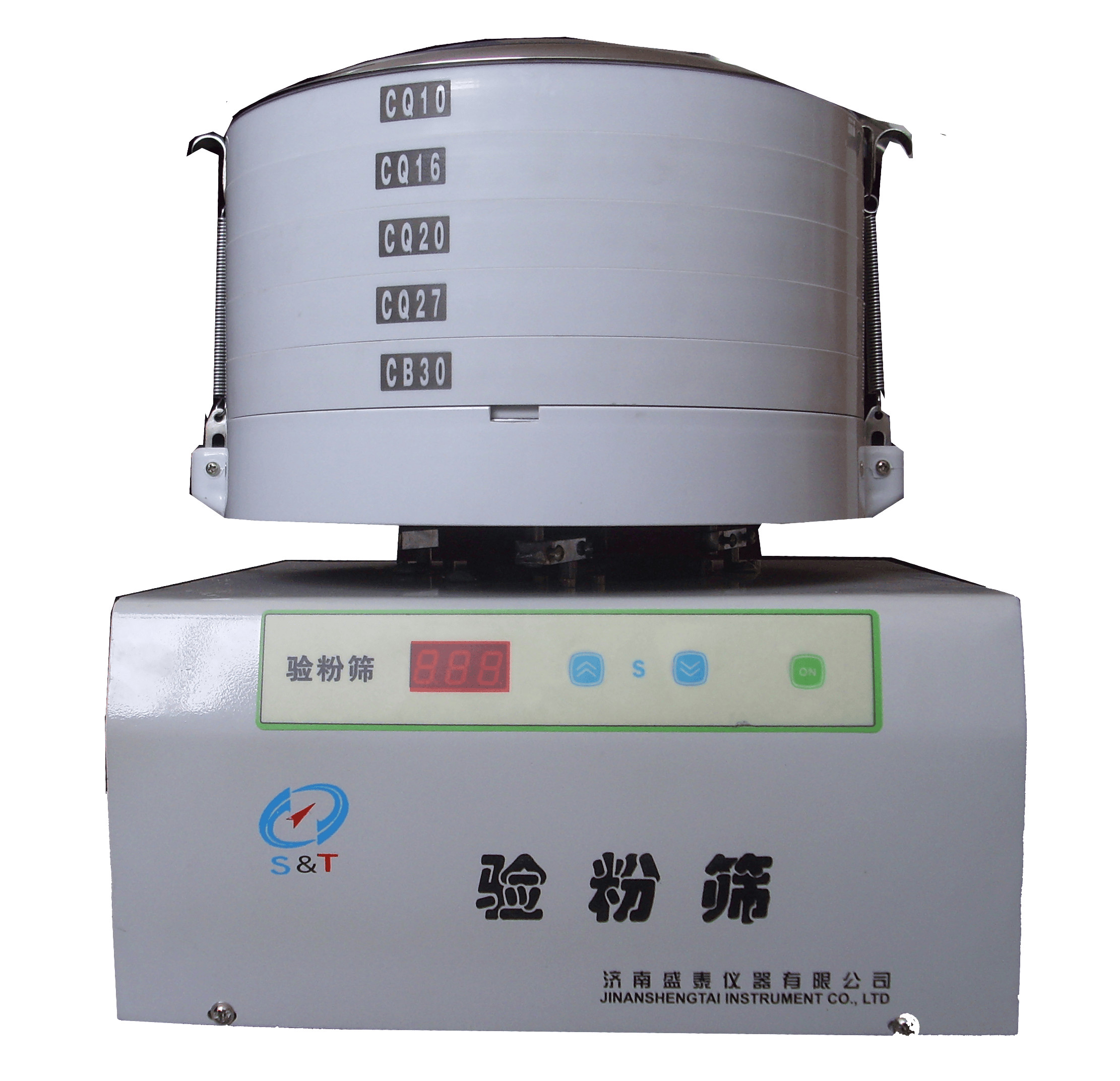

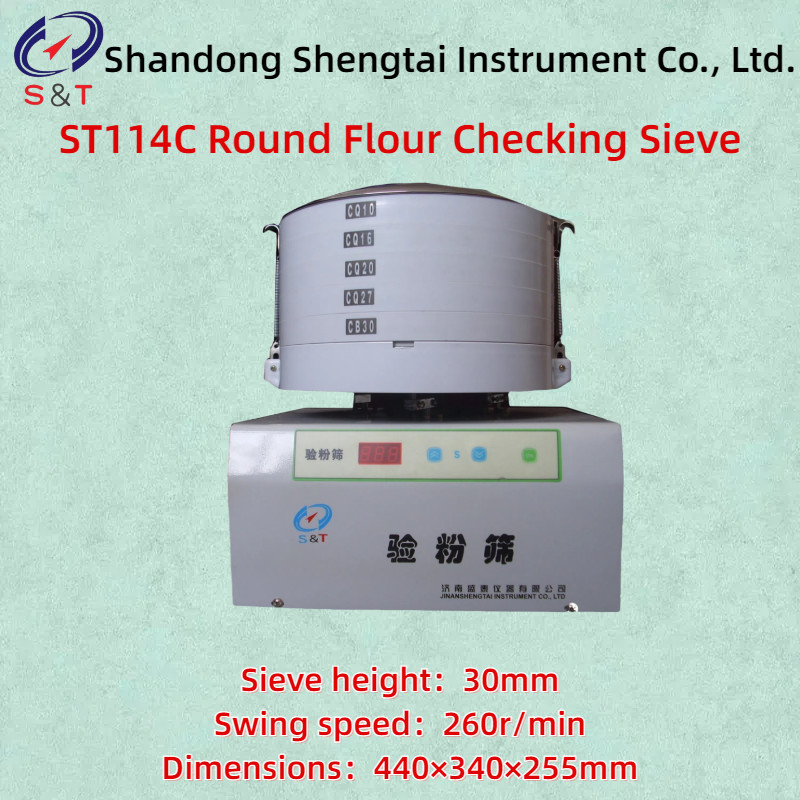

ST114C Round Flour Checking Sieve
ST114C Round Flour Checking Sieve is researched and developed by our company according to national standard GB/T 5507-2008 "testing of grain and oil, degree of flour thickness". It's a professional instrument for testing degree of thickness of flour and grain. It has the advantages of reasonable structure, steady operation, stable performance, sturdy and durable, easy to operate. And it is the necessary testing equipment used by the Quality and Technical Supervision Bureau, grain and oil quality inspection departments, food processing industry, schools and so on departments need to test the degree of thickness of flour and grain.
In terms of structure, a worm gear with a stable center of gravity and high precision is selected for variable speed transmission, and the plane rotation movement is made through the eccentric connecting rod mechanism, and the pressing rod seat integrated with the tray makes the sieve fixed more firmly.
The electronic timer controlled by the single-chip microcomputer has high timing accuracy and easy operation, which can realize time setting, work timing, emergency stop, automatic zero and other functions. The use of soft film key switch prolongs the service life of the instrument, and the technical indicators of the instrument fully meet the requirements of GB/T5507-2008 new national standard, and are necessary testing equipment for grain and oil quality inspection stations at all levels, product quality inspection institutes of the Bureau of Quality and Technical Supervision, and grain processing plants to determine the coarse and fineness of powder.
Technical specifications :
Maximum sieve capacity:200g
Tactical diameter:50mm
Sieve diameter:Sieve area: Φ300mm( diameter)
Timing range:0 ~15 min (adjustable)
Motor power:120W
Working voltage:AC220V
Total weight:28kg
Dimensions:440×340×255mm
| Maximum sieve capacity | 200g |
| Tactical diameter | 50mm |
| Sieve diameter | Sieve area Φ 300mm( diameter) |
| Sieve height | 30mm |
| Swing speed | 260r/min |
| Timing range | 0 ~15 min (adjustable) |
| Motor power | 120W |
| Working voltage | AC220V |
| Total weight:28kg Dimensions:440mm × 340mm × 255mm |
| Screen type | aperture(mm) |
| CQ10 | 710um(25目) |
| CQ16 | 0.427(41目) |
| CQ20 | 0.336(51目) |
| CQ27 | 0.242(69目) |
| CB30 | 0.198(76目) |
| CB36 | 0.160(91目) |
| CB42 | 0.137(107目) |
Packing list:
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Sieve lattice | 1 | Set | |
| 3 | Power cord | 1 | piece | |
| 4 | Fuse tube | 1 | piece | 10A in the safe seat |
| 5 | Instruction manual | 1 | Copy | |
| 6 | Warranty card | 1 | copy | |
|
|
