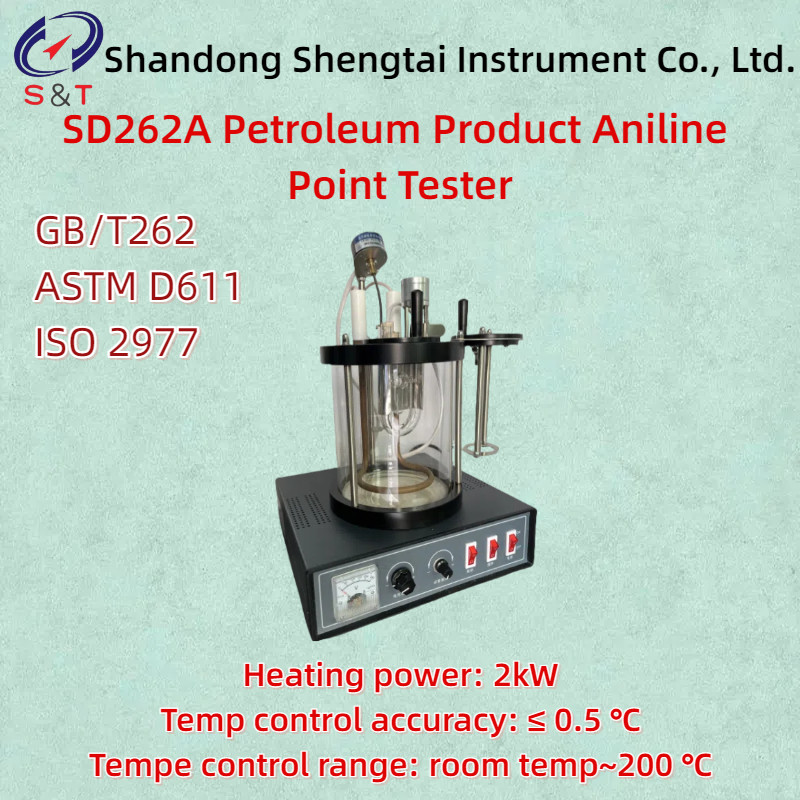

SD262A Petroleum Product Aniline Point Tester
The SD262A petroleum product aniline point analyzer is designed and manufactured according to the requirements specified in the national standard GB/T262-2010 "Determination of Aniline Point and Mixed Aniline Point of Petroleum Products and Hydrocarbon Solvents", and is suitable for determining the aniline point of light colored petroleum products and dark colored petroleum products.
The minimum temperature required for petroleum products and an equal volume of aniline to dissolve into a single liquid phase is called the aniline point.
| Standard | GB/T262 ASTM D611 ISO 2977 |
| Test sample | Petroleum and chemical products |
| Test results | Aniline dots of light and dark petroleum products |
| Product model | SD262A |
Main technical features and parameters
| Temperature control system | digital PID temperature regulating controller |
| Heating method | Stainless steel electric heating tube |
| Working power supply | AC220V ± 10% 50HZ |
| Motor power | 6W |
| Heating power | 2kW |
| Temperature control range | room temperature~200 ℃ |
| Temperature control accuracy | ≤ 0.5 ℃ |
| Lighting power supply | 12V |
| Net size | 280 * 260 * 440 mm |
| Net weight | 5.45 kg |
| Packaging size | 370 * 360 * 500 mm |
| Packaging weight | 13kg (wooden crate) |
● The design of this instrument fully complies with the requirements of GB/T262 standard for aniline point testing of dark petroleum products and light petroleum products.
● This instrument is capable of measuring the aniline point of heavy oil (dark petroleum products) and light oil (light petroleum products).
● The temperature control system adopts a digital PID temperature regulation controller, which has high temperature control accuracy, stable and reliable performance, and easy operation.
● Heating method: Built in stainless steel electric heating tube for heating
● Working power supply: AC220V ± 10%; 50Hz
● Motor power: 6W
● Heating power: 2kW
● Temperature control range: room temperature~200 ℃
● Temperature control accuracy: ≤ 0.5 ℃
● Lighting power supply: 12V
● Net size: 280 * 260 * 440 mm 5.45 kg
● Packaging size: 370 * 360 * 500 mm 13kg (wooden crate)
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| Number | Name | Unit | Quantity | Note |
| 1 | Petroleum Aniline Point Tester | Unit | 1 | |
| 2 | Temperature gauge 25~105 ℃, division 0.2 ℃ | Piece | 1 | |
| 3 | Temperature gauge 90-170 ℃, with a division of 0.2 ℃ | Piece | 1 | |
| 4 | U-shaped tube (for heavy oil testing) | Piece | 1 | |
| 5 | Metal cover (for heavy oil testing) | Piece | 1 | |
| 6 | Lighting components (for heavy oil testing) | Piece | 1 | |
| 7 | Test device seat 2 (for heavy oil testing) | Piece | 1 | Mixing device with motor |
| 8 | Glass test tube (for light oil testing) | Piece | 1 | Φ25 |
| 9 | Glass casing (for light oil testing) | Piece | 1 | Φ40 |
| 10 | Soft ring plug (for light oil testing) | Piece | 1 | Central hole Φ 25 |
| 11 | Test tube plug (for light oil testing) | Piece | 1 | Central hole Φ 9 and mixing rod hole |
| 12 | Mixing rod (for light oil testing) | Root | 1 | |
| 13 | Test device seat 1 (for light oil testing) | Piece | 1 | |
|
|
