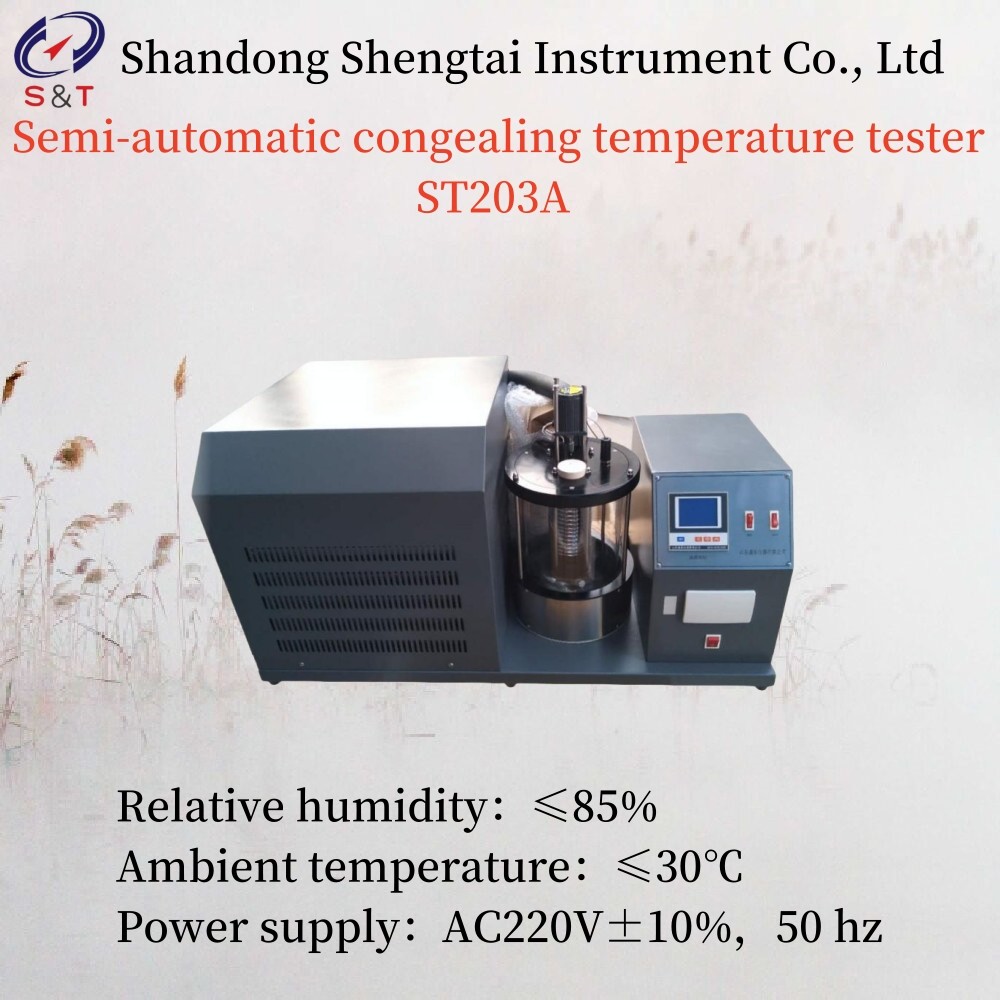

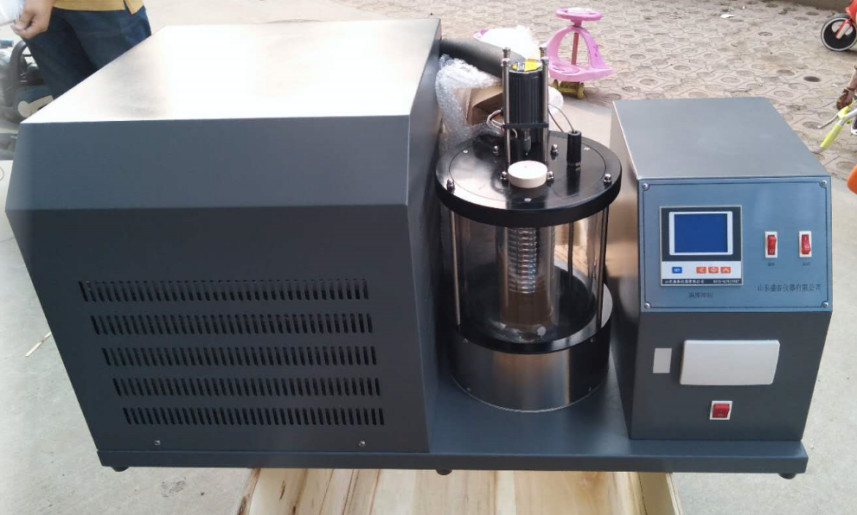

ST203A semi-automatic congealing temperature tester
ST203A semi-automatic congealing temperature tester is designed and manufactured according to the general rule 0613 of Chinese Pharmacopoeia in 2020 and USP41 651 congealing temperature .Suitable for determination of the congealing temperature of medicine.
The maximum temperature at which a drug stays unchanged in a short period of time when it condenses from a liquid to a solid is determined.
Some drugs have certain condensation point, purity change, condensation point also changed.
The determination coagulate point may distinguish or examine the pure impurity degree of the medicine.
Features:
water bath or alcohol bath controlled by digital temperature controller, automatic sample stirring by mechanical motor, double motor stirring.
Technical parameters
| Power supply | AC220V±10% 50 hz |
| Working cold bath | double-layer vacuum glass bath |
| Cold tank temperature control | -30℃ ~ 80℃ |
| Temperature control accuracy | ±0.5℃ |
| Bath liquid stirring | The stirring motor can stir automatically with a power of 6W and 1200r/min |
| Refrigeration system | Compressor refrigeration |
| Sample agitation | synchronous deceleration motor, 60 times/min |
| Ambient temperature | ≤30℃ |
| Relative humidity | ≤85% |
| Overall power consumption | around 1500W |
| Instrument size | 720mm * 450mm * 680mm |
| Weight | 57kg |
1.Power supply: AC220V±10%;50 hz.
2.Working cold bath: double-layer vacuum glass bath.
3.Cold tank temperature control: -30℃ ~ 80℃
4.Temperature control accuracy: ±0.5℃.
5.Bath liquid stirring: The stirring motor can stir automatically with a power of 6W and 1200r/min.
6.Refrigeration system: Compressor refrigeration.
7.Sample agitation: synchronous deceleration motor, 60 times/min.
8.Ambient temperature: ≤30℃.
9.Relative humidity: ≤85%.
10.Overall power consumption: around 1500W.
11.Instrument size: 720mm * 450mm * 680mm Weight: 57kg
| Power supply | AC220V±10%;50 hz. |
| Working cold bath | double-layer vacuum glass bath |
| Cold tank temperature control | -30℃ ~ 80℃ |
| Temperature control accuracy | ±0.5℃. |
| Bath liquid stirring | The stirring motor can stir automatically with a power of 6W and 1200r/min. |
| Refrigeration system | Compressor refrigeration |
| Sample agitation | synchronous deceleration motor, 60 times/min. |
| Ambient temperature | ≤30℃. |
| Relative humidity | ≤85%. |
| Overall power consumption | around 1500W. |
| Instrument size: 720mm * 450mm * 680mm Weight: 57kg |
chnical parameters
1.Power supply: AC220V±10%;50 hz.
2.Working cold bath: double-layer vacuum glass bath.
3.Cold tank temperature control: -30℃ ~ 80℃
4.Temperature control accuracy: ±0.5℃.
5.Bath liquid stirring: The stirring motor can stir automatically with a power of 6W and 1200r/min.
6.Refrigeration system: Compressor refrigeration.
7.Sample agitation: synchronous deceleration motor, 60 times/min.
8.Ambient temperature: ≤30℃.
9.Relative humidity: ≤85%.
10.Overall power consumption: around 1500W.
11.Instrument size: 720mm * 450mm * 680mm Weight: 57kg
