SH0305 Petroleum product seal adaptability index tester
SH0305 petroleum product sealing adaptability index tester is suitable for the determination of all kinds of petroleum products, but not suitable for the determination of petroleum products containing water.
The inner diameter of the rubber ring is measured with a conical gauge, and then the rubber ring is soaked in the sample at a certain temperature for 24 hours. Then the rubber ring is taken out and cooled. The change of the inner diameter of the rubber is measured with a conical gauge.
Petroleum Products Seal Compatibility Index Tester
Main features
Stainless steel lining with fan, 350 × 350 × 350 mm inside.
High efficiency thermal insulation;
Microcomputer LCD PID temperature control, accuracy 0.1°C, temperature sensor PT100 RTD;
Operating range: room temperature ～ 200°C ± 1°C (test temperature is 100°C);
Over temperature safety protection;
Stainless steel heater;
300 × 200 mm glazing on the double doors for easy viewing;
Standard alloy steel gauge;

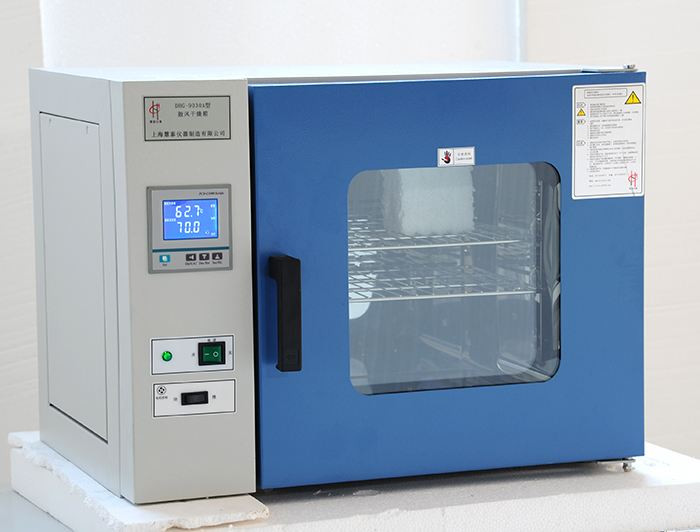

Instrumentation includes a convection oven with a standard design for temperatures up to 200°C
Technical parameters
Applicable standard: SH/T0305 IP278
Power source: AC220±10% 5 0Hz±5%
Heating method: electric heating wire heating
Temperature control mode: PID temperature controller
Temperature control range: normal temperature ～200±1℃
Operating voltage: 10kV ±2%
| Description |
Parameters |
| The input power supply |
AC220±10% 50Hz±5% |
| Power |
0.8KW |
| Temperature range |
normal temperature ～200±1℃ |
| Temperature accuracy |
± 1 ºC |
| Operating voltage |
10kV ±2% |
| Applicable standard |
SH/T0305 IP278 |
| Heating method |
electric heating wire heating |
| Temperature control mode |
PID temperature controller |
| Relative humidity |
<85% RH |
| Instrument size: 550 * 550 * 450mm Weight: 30kg |
Packing list:
| S/N |
Name |
Unit |
Quantity |
Remarks |
| 1 |
Host |
set |
1 |
|
| 2 |
Tepered inner gauge |
piece |
1 |
|
| 3 |
Rubber ring |
piece |
4 |
|
| 4 |
Wide mouth bottle |
piece |
2 |
|
| 5 |
Insurance |
piece |
2 |
|
| 6 |
Specification |
Copy |
1 |
|
| 7 |
Warranty card |
copy |
1 |
|
CUSTOMERS NEED TO PREPARE TEST SUPPLIES:
1. MEASURING CYLINDER: 50ML
2. BAMBOO TWEEZERS: LENGTH 150~200MM
3. Scissors
4. Filter Pape
5. Petroleum: analytical pure, 60～90 °C
SH0305 petroleum product sealing adaptability index tester is suitable for the determination of all kinds of petroleum products, but not suitable for the determination of petroleum products containing water.
The inner diameter of the rubber ring is measured with a conical gauge, and then the rubber ring is soaked in the sample at a certain temperature for 24 hours. Then the rubber ring is taken out and cooled. The change of the inner diameter of the rubber is measured with a conical gauge.
Petroleum Products Seal Compatibility Index Tester
