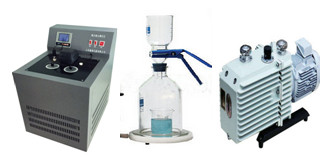

SH0210 hydraulic oil filter tester
SH0210 hydraulic oil filter tester is valuable in the evaluation of the filtration performance of hydraulic oil, all kinds of industrial hydraulic system and vehicle hydraulic system of hydraulic oil, because of the poor filtration performance of oil, caused by filter blockage is a serious problem.
Especially when the hydraulic system is mixed with a small amount of water, the blocking of the hydraulic system filter is more serious, which causes the failure of hydraulic transmission, the wear and damage of the hydraulic pump and other components.
Main features
Fully enclosed imported compressor refrigeration, to ensure the supply of cold capacity;
Special rotary vane vacuum pump, provide enough vacuum;
Glass fittings meet the requirements of SH/T0210 standard;
Digital display time, simple operation;
Stainless steel constant temperature bath;
Glass funnel with scale;
Precision pressure regulating valve, the pressure can be controlled within the range of 86658Pa
Micro processing thermostat and PID control, digital display temperature, precision 0.1℃, PT100 RTD temperature probe;
Operating temperature range: room temperature ～ 80°C;
Safety measures to prevent overheating or low liquid levels
Technical parameters
Applicable standard: SH/T0210
Temperature range: 0 ～ 60℃
Absorption mode: vacuum pump
Working pressure: 86658Pa
Pressure regulation: pressure regulating valve
Timing mode: digital display timer
Timing range: 0 ～ 999h
Working power supply: AC220V
Refrigeration mode: compressor refrigeration
Heating method: electric heating tube heating
Temperature control mode: digital display PID temperature controller
| Applicable standard |
SH/T0210 |
| Temperature range |
0 ～ 60℃ |
| Absorption mode |
vacuum pump |
| Working pressure |
86658Pa |
| Pressure regulation |
pressure regulating valve |
| Timing mode |
digital display timer |
| Timing range |
0~999h |
| Working power supply |
AC220V |
| Temperature control mode |
digital display PID temperature controller |
| Refrigeration mode |
compressor refrigeration |
| Heating method |
electric heating tube heating |
SH0210 hydraulic oil filter tester is valuable in the evaluation of the filtration performance of hydraulic oil, all kinds of industrial hydraulic system and vehicle hydraulic system of hydraulic oil, because of the poor filtration performance of oil, caused by filter blockage is a serious problem.
Especially when the hydraulic system is mixed with a small amount of water, the blocking of the hydraulic system filter is more serious, which causes the failure of hydraulic transmission, the wear and damage of the hydraulic pump and other components.
Main features
Fully enclosed imported compressor refrigeration, to ensure the supply of cold capacity;
Special rotary vane vacuum pump, provide enough vacuum;
Glass fittings meet the requirements of SH/T0210 standard;
Digital display time, simple operation;
Stainless steel constant temperature bath;
Glass funnel with scale;
Precision pressure regulating valve, the pressure can be controlled within the range of 86658Pa
Micro processing thermostat and PID control, digital display temperature, precision 0.1℃, PT100 RTD temperature probe;
Operating temperature range: room temperature ～ 80°C;
Safety measures to prevent overheating or low liquid levels
