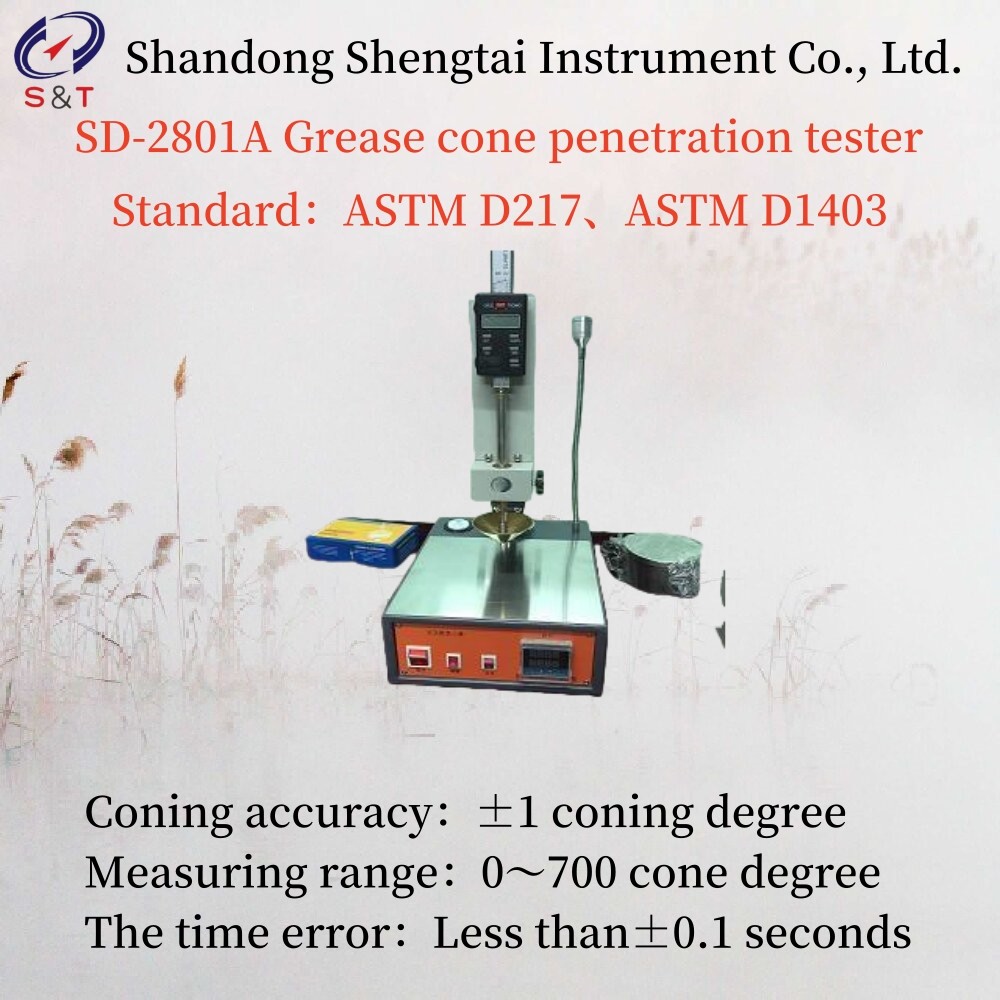

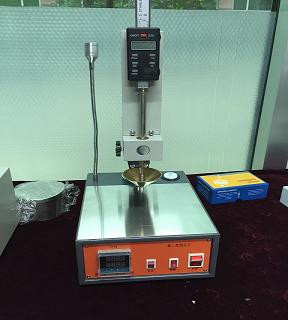

SD-2801A Grease cone penetration tester
SD-2801A cone penetration tester is designed and manufactured according to the technical requirements and relevant regulations of the People's Republic of China standard GB/T269 "Grease and petroleum grease cone penetration determination method". It is mainly suitable for testing the cone penetration of grease.
The instrument can also be used for solid fine grain, powder, colloid, frozen materials, as well as cheese, sugar gum, butter, cream, fermented materials and other food raw materials inspection, in food industry, traffic and highway engineering and other industrial departments can be widely used.
Standard: ASTM D217 ASTM D1403
Standard Lubricating Grease Cone Penetration Tester SD2801A
Cone Penetrometer ASTM D217Lubricating Grease Cone Penetration Tester
ASTM D217Lubricating Grease Cone Penetration Tester
Lab ASTM D217Lubricating Grease Cone Penetration Testing Equipment
Standard Penetration Test ASTM D217 Dynamic Grease Cone Penetrometer
I. Main technical features
1. The use of digital display to display the taper value, intuitive and eye-grabbing.
2. Digital display of cone entry time control device.3, With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.
II. Main technical parameters and indicators
| Measuring range | 0～700 cone degree |
| The time error | Less than±0.1 seconds; |
| Coning accuracy | ±1 coning degree |
| Standard | National standard GB/T269 |
| Instrument size: 340*282*515 Weight:11kg |
| Timing controller | Time can be set according to their own needs, the time error is less than±0.1 seconds |
| Resolution | 0.01mm |
| Temperature control accuracy | 25±0.1ºC (Note:The ambient temperature shall not exceed 20 ºC) |
| Temperature control mode | High accuracy digital temperature controller |
| Constant temperature bath | Hard glass bath |
| Working power supply | 80W |
| Standard needle | 2.5±0.05g |
| Stirring | automatically stirred by a magnetic stirrer |
| Standard cone | 102.5±0.05g |
| Needle holder | It can be adjusted roughly and finely. Convenient toad just and exact to aim the sample |
| Others | Equipped with a cold light source and a magnifier; Convenient for operation and observation |
Packing list:
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Instrument host | set | 1 | |
| 2 | Standard cone | piece | 1 | |
| 3 | Connecting rod | piece | 1 | |
| 4 | Sample holder | piece | 1 | |
| 5 | Fuse 5A(∮5×20) | piece | 1 | |
| 6 | Power cord(250V 6A) | piece | 1 | |
| 7 | instructions | copy | 1 | |
| 8 | Certificate warranty card | copy | 1 | |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
