automatic Vaseline drop point meter ointment drop point tester Chinese pharmacopoeia England pharmacopoeia

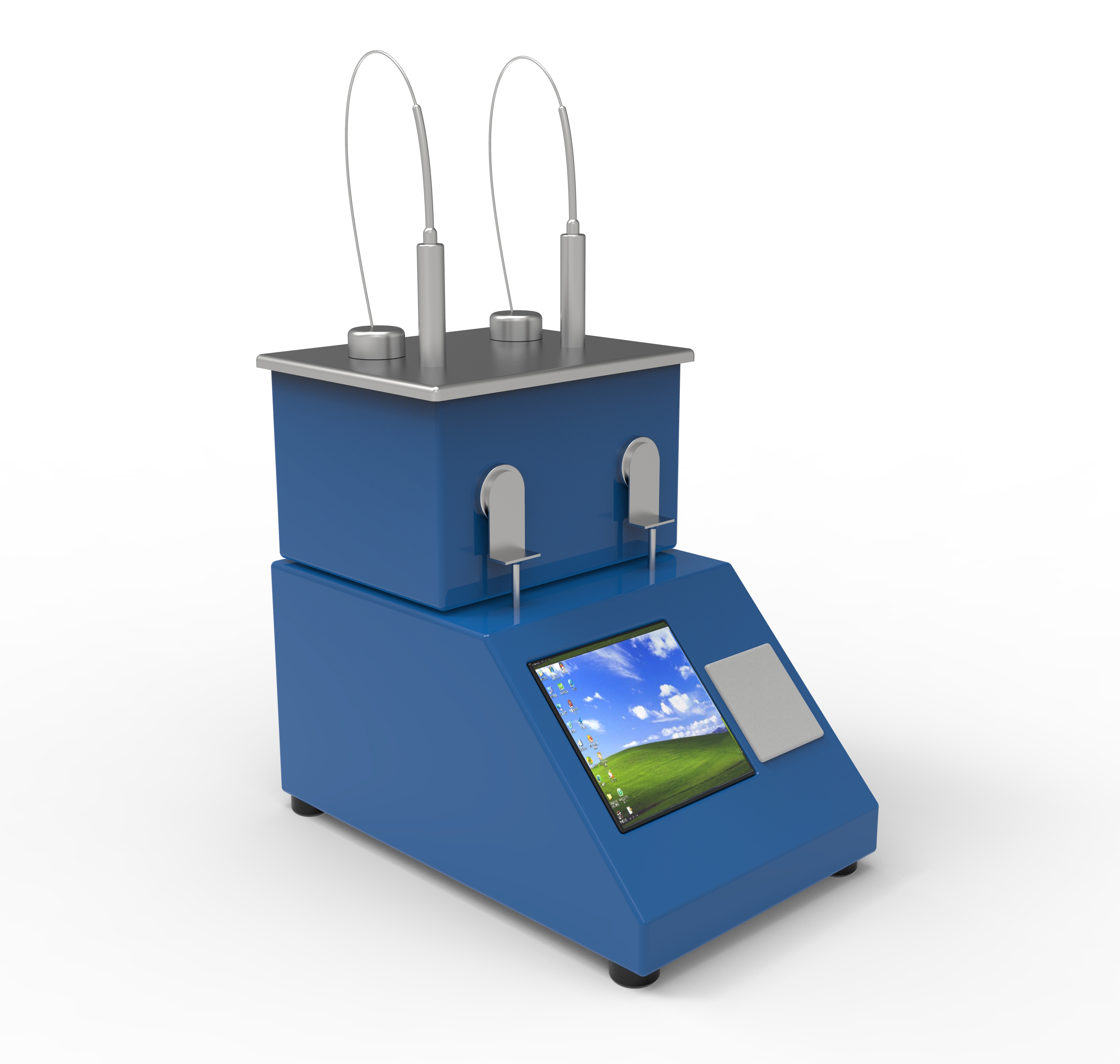

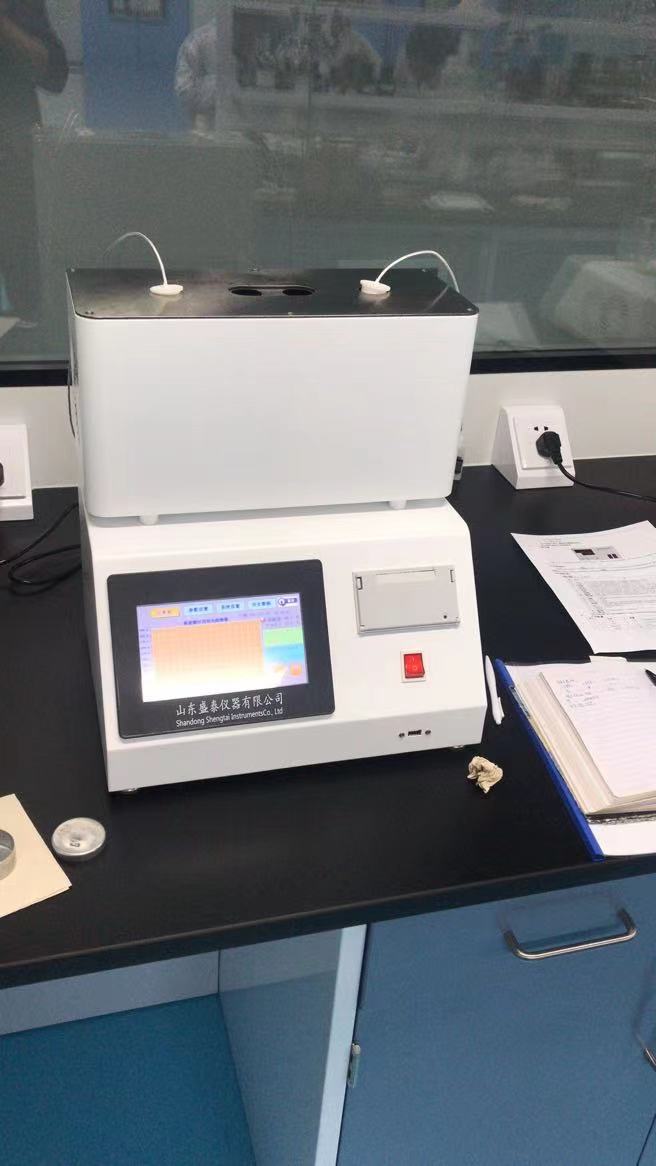

ST212B fully automatic Vaseline ointment drop point meter meets the 2020 Chinese pharmacopoeia standard and England pharmacopoeia , with microprocessor as the core, it integrates mechanical, photo electronic and micro detection technology, and has the functions of automatic temperature rise control, automatic adjustment of temperature rise rate, automatic detection and recording of drop point data, automatic printing and output, etc., to complete the measurement of drop point.
| heating | Metal bath heating, no noise, no pollution, fast heating rate; |
| Temperature measurement range | :room temperature ~ 400 ℃ |
| Resolution | 0.1℃ |
| Typing | Chinese or English character printing |
| Printer | Small thermal printer |
| Test sample | Vaseline ointment |
| Detection mode | imported high-precision optical fiber detection |
| Test Item | drop point Test |
| Curve display | Display the trend chart of temperature time curve |
| Result output | At the same time can be equipped with U disk output function, output to the computer end for long-term storage |
Main Features and parameter
1.7 "touch screen display;
2.Imported temperature sensor to ensure accurate and stable temperature measurement and control;
3.Metal bath heating, no noise, no pollution, fast heating rate;
4.High temperature resistant special optical fiber is used for droplet detection.
5.Equipped with internal clock, no need to enter experimental date.
6.Applicable standards:Chinese Vaseline ointment 2020
7.Temperature measurement range: room temperature ~ 400 ℃ Resolution: 0.1℃
8.Number of test holes: 2
9.Ambient temperature: 10℃ ~ 35℃
10.Temperature control precision of metal bath: ±1℃
11.Environmental relative humidity: 30 ~ 80%RH
12.Power supply: AC220± 10% V 50HZ±1HZ
13.Power supply: less than 2KW
14.Typing: Chinese or English character printing
15.Printer: Small thermal printer
16.Detection mode: imported high-precision optical fiber detection
17.Curve display: Display the trend chart of temperature time curve
18.Storage: Experimental results can be stored in 199 groups of historical data for easy query;
19.Result output: At the same time can be equipped with U disk output function, output to the computer end for long-term storage
20.Output format: The output format of the usb flash disk is CSV or Excel.
21.Standard printing: standard printing with micro printer automatic measurement automatic thermal sensitive printing
22.Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out later
23.Data management: Can connect to limIS system
24.Data memory: Microcomputer instrument memory can be expanded to 16 gigabytes.
25.Account management: According to the password to set up the account management layer, can set up the total account and sub-account.
